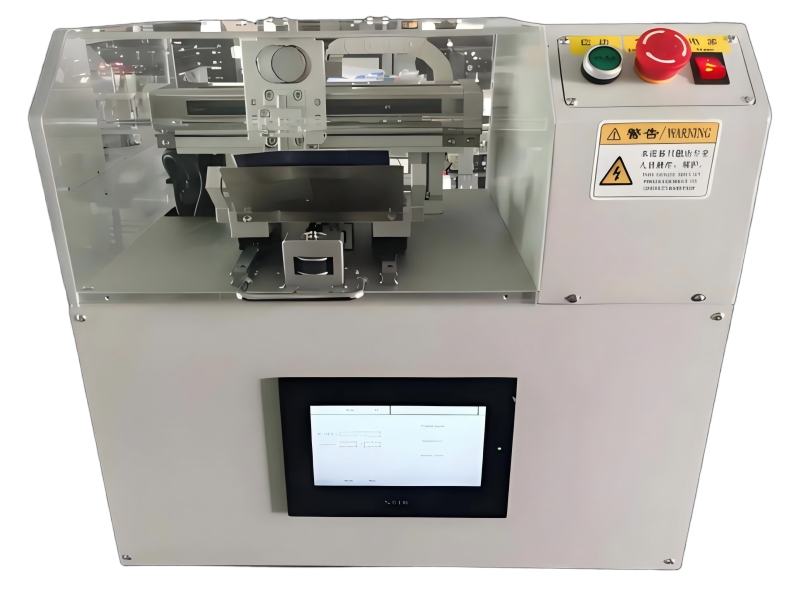

PT085 Stamp, Pen Stress, Abrasion All-in-One Tester - Passport Durability Test
The PT085 Stamp, Pen Stress, Abrasion All-in-One Tester is a versatile benchtop system designed to evaluate multiple mechanical durability characteristics of Machine Readable Passports (MRP) and similar booklet-type travel documents. It combines stamp imprint testing, pen stress testing and abrasion testing in a single platform, with each test available individually or as a fully integrated configuration.
Operators can select from three ISO-preset test trajectories through the color touchscreen interface and easily adjust parameters such as cycle count, test area, speed and force. This flexibility allows laboratories to run standard compliance tests as well as more severe, custom endurance profiles to verify product margins beyond ISO/ICAO baseline requirements.
Ideal for passport personalization bureaus, government document test labs, MRP manufacturers and independent inspection agencies validating stamp, pen and abrasion durability.
|
1. Three Tests in One Platform
Stamp imprint, pen stress and abrasion tests can be purchased separately or combined on one machine to save lab space and investment. |
2. ISO-Preset Test Trajectories
Three pre-programmed trajectories aligned with ISO/ICAO requirements simplify setup and ensure repeatable, standard-compliant results. |
|
3. Color Touchscreen Interface
Easily modify test parameters including cycle number, frequency, test area, speed and force directly on the large color touch display. |
4. Customizable Test Severity
Run tests deeper or broader than standard by adjusting interface parameters, supporting compliance verification and R&D stress screening. |
| Item | Value |
| Model Number | PT085 |
| Description | Stamp, Pen Stress, Abrasion All-in-One Tester |
| Test Functions | Stamp imprint, pen stress, abrasion (selectable / combined) |
| Configuration Options | Single test module or integrated 3-in-1 configuration |
| Control Interface | Color touchscreen with editable parameters |
| Test Trajectories | 3 ISO-preset trajectories, user-adjustable |
| Adjustable Parameters | Cycles, frequency, test area, speed, force |
| Power Supply | AC 100-230 V, 50-60 Hz |
| Dimensions (L x W x H) | 550 x 370 x 550 mm |
| Net Weight | 52 kg |
The PT085 supports passport durability testing aligned with international MRP standards:
|
ISO/IEC 18745 (2018)
Clause 8.5 — Stamp imprint test; |
ICAO Doc 9303 V3.2 (2006)
Section 5.5 — Stamp test; |
|
ePassport Personalization Centers
Validate booklet durability before and after printing, lamination, chip implantation and personalization. |
Government Document Test Labs
Verify stamp, pen stress and abrasion compliance against ISO/ICAO acceptance criteria. |
|
MRP Booklet Manufacturers
Incoming QC, material qualification and production monitoring for cover coatings, data pages and bindings. |
Third-Party Inspection Agencies
Independent durability verification for procurement acceptance, audit sampling and compliance certification. |
