PT095 Data Page & Cover Warpage Tester - MRP Passport Flatness Test

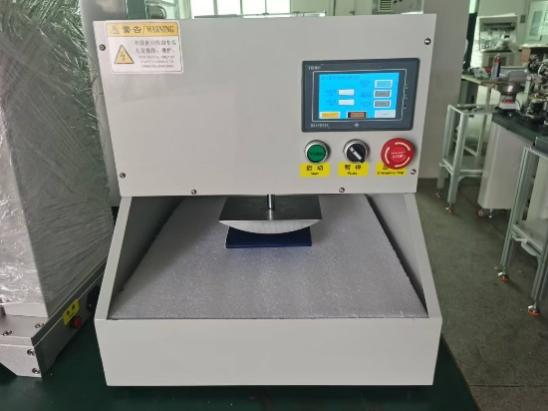

The PT095 Data Page and Cover Warpage Tester is a precision measurement device designed to evaluate the flatness and warpage of Machine Readable Passports (MRP), especially the data page and cover areas. Excessive warpage can cause feeding failures in automated readers, chip contact issues, and visual rejection during personalization and inspection.
The tester uses an XY manual screw stage to position a dial indicator anywhere across the passport surface, allowing operators to measure and record warpage values at multiple points. Its compact size and simple mechanical design make it an affordable, low-maintenance solution for incoming QC, production sampling, and compliance verification.
Compact footprint of 390 x 340 x 340 mm and 15 kg net weight make the PT095 easy to deploy on standard lab benches for passport quality control.
|
1. XY Manual Screw Positioning Stage
Precision hand-wheel screws move the dial indicator across the full passport surface to reach any measurement point. |
2. Dial Indicator Warpage Measurement
Reliable mechanical dial gauge reads height deviation at each location, giving accurate, repeatable flatness data. |
|
3. Data Page & Cover Testing
Measure warpage on both the laminated data page and the outer cover of passport booklets. |
4. Compact Benchtop Design
Small footprint of 390 x 340 x 340 mm and 15 kg weight fits easily on standard lab benches. |
| Item | Value |
| Model Number | PT095 |
| Description | Data Page and Cover Warpage Tester |
| Test Function | Warpage / flatness measurement of MRP data page and cover |
| Positioning System | XY manual screw stage |
| Measurement Sensor | Dial indicator (dial gauge) |
| Measurement Range | Any position across passport data page and cover |
| Dimensions (L x W x H) | 390 x 340 x 340 mm |
| Net Weight | 15 kg |
The PT095 supports warpage and flatness testing aligned with international MRP standards:
|
ISO/IEC 18745 (2018)
Clauses 9.5 and 9.6 — Warpage test methods for passport booklets and data pages. |
ICAO Doc 9303 V3.2 (2006)
Sections 6.5 and 6.6 — Durability and dimensional requirements for machine readable travel documents. |
|
ePassport Personalization Centers
Check data page and cover flatness before and after lamination, chip implantation, and personalization. |
Government Document Test Labs
Verify MRP warpage compliance against ISO/ICAO acceptance criteria. |
|
MRP Booklet Manufacturers
Incoming QC and process control for cover materials, laminates, and binding flatness. |
Third-Party Inspection Agencies
Independent flatness / warpage verification for procurement acceptance and compliance audits. |
