PT074 MRP Holder for Passport | 10-Station Stationary Fixture for ePassport Testing

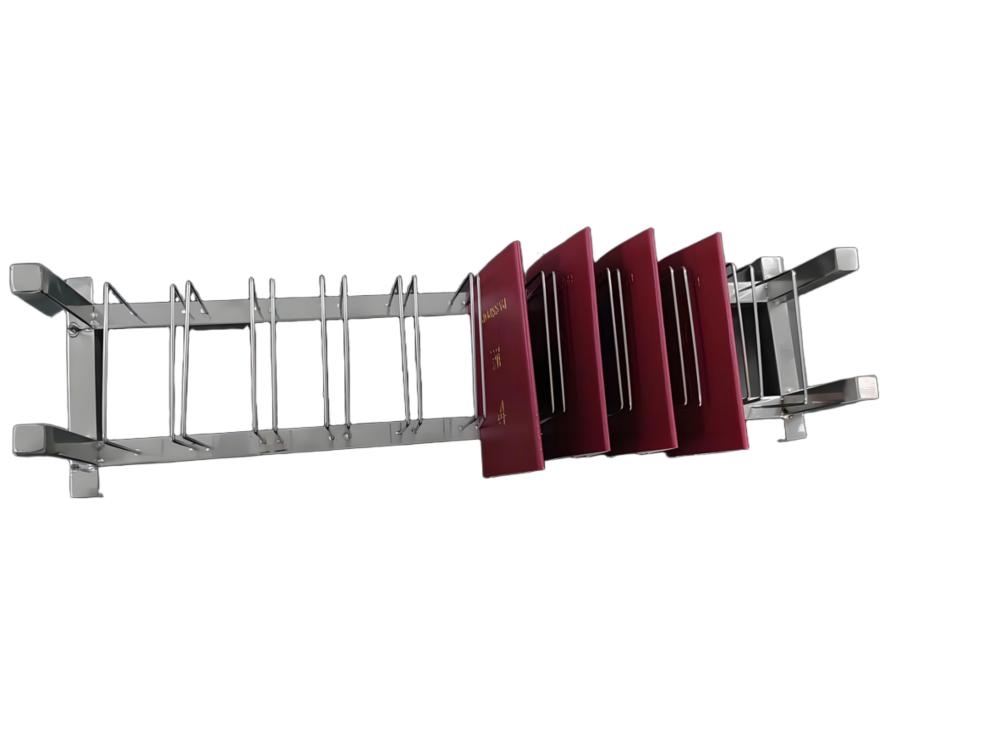

The PT074 MRP Holder for Passport is a precision-engineered stationary fixture used to hold electronic passports (ePassports) and machine-readable passports (MRPs) in a stable, repeatable position before and during compliance testing. Although it is not a testing instrument itself, it is an essential accessory that supports reliable, reproducible test results in any passport personalization, document inspection, or RFID performance laboratory.
Per ISO/IEC 18745 (2018) and ICAO V3.2 (2006), the ePassport must remain stationary and correctly oriented before test measurements begin. The PT074 ensures this precondition is met consistently across all ten independent stations.
|
1. Ten Independent Stations
Stage multiple documents at once for batch testing, calibration routines, and production-line quality checks. |
2. Stable Stationary Positioning
Keeps each passport flat, aligned, and motionless during setup and measurement—eliminating positional errors. |
|
3. Compact & Lightweight
Dimensions 470 × 135 × 150 mm and weight only 2 kg fit easily on standard test benches. |
4. Standards-Ready Design
Supports the positioning requirements cited in ISO/IEC 18745 and ICAO V3.2. |
| Item | Value |
| Model Number | PT074 |
| Description | MRP Holder for Passport |
| Number of Stations | 10 Independent Slots |
| Dimensions (L × W × H) | 470 × 135 × 150 mm |
| Net Weight | 2 kg |
| Typical Use | Pre-test positioning / Stationary holding |
The PT074 is designed to help laboratories meet the stationary-positioning requirements referenced in leading ePassport and travel-document standards:
- ISO/IEC 18745 (2018): Clauses 7.4, 8.1, 8.2, 8.3, 8.4, 8.13 — covers dimensional, positional, and test-setup requirements for machine-readable passports.
- ICAO V3.2 (2006): International Civil Aviation Organization specifications for electronic passports, ensuring consistent document orientation prior to RFID and optical inspection tests.
|
ePassport Test Labs
Stage passports before contactless chip RF performance, antenna coupling, and document-structure verification tests. |
Document Personalization Lines
Hold freshly personalized passports in a fixed position for visual inspection and chip encoding verification. |
|
Production QC Stations
Keep multiple units ready for batch sampling and go/no-go checks without repeatedly repositioning each document. |
Calibration & Reference Setups
Maintain a consistent, repeatable mounting position for golden-sample documents during calibration and training. |
Contact us for pricing, lead time, custom station configurations, or additional technical documentation for the PT074 MRP holder and our full range of passport testing accessories.
