PT087 Dynamic Flexison Tester - Passport Bending Fatigue Test Machine
Product Overview

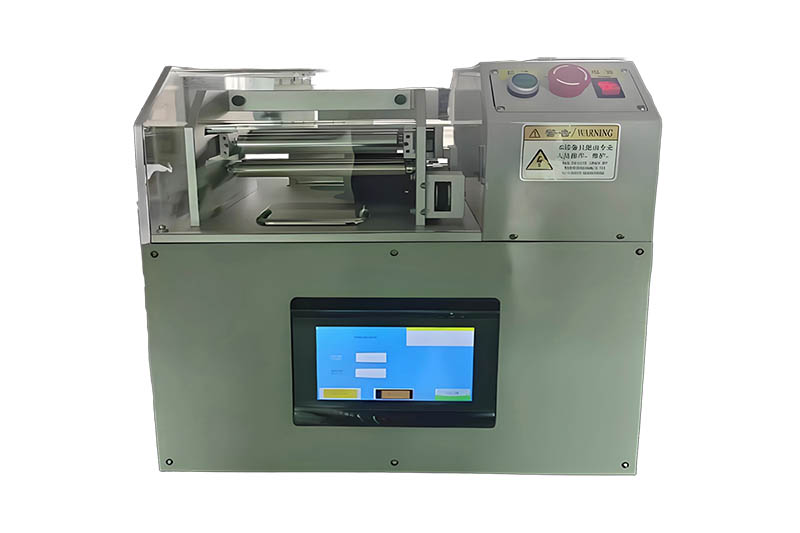

The PT087 Dynamic Flexison Tester is a self-contained benchtop instrument designed to evaluate the dynamic bending fatigue resistance of passport booklets, ID card booklets, and similar multi-layer document structures. It reproduces the repeated flexing motion that travel documents undergo during manual handling, automated readers, and wallet storage.
Equipped with a color touchscreen interface, operators can easily configure test parameters such as cycle count, frequency, and bending length. The system is also supplied with a 40 N static weight to support static-load bending tests, making the PT087 suitable for both dynamic fatigue and static deflection protocols.

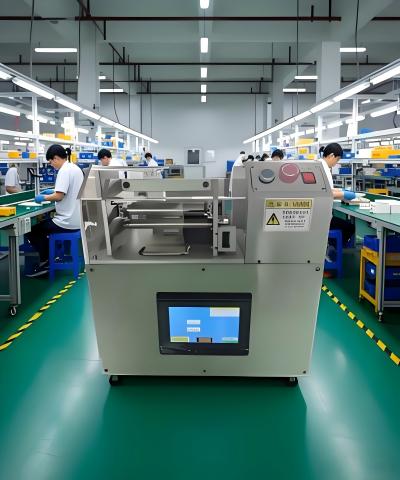

Compact footprint of 550 x 370 x 550 mm, 52 kg net weight, and universal AC 100 - 230 V power make the PT087 easy to deploy in passport test labs and personalization centers.
1. Dynamic Bending Fatigue Test Simulates repeated flexing of passport booklets to measure fatigue life and detect early failure of covers, spine, and inner pages. | 2. Color Touchscreen Control Intuitive on-screen interface for setting cycle count, test frequency, bending length, and other parameters without complex training. |
3. 40 N Static Test Weight Included Randomly supplied 40 N weight enables static bending / deflection tests in addition to dynamic fatigue cycles. | 4. Self-Contained Benchtop Design Compact all-in-one unit with universal AC power, ready for immediate deployment in QC labs and personalization centers. |
| Item | Value |
| Model Number | PT087 |
| Description | Dynamic Flexison Tester |
| Test Function | Bending fatigue resistance of passport / booklet documents |
| Static Load Accessory | 40 N weight included for static bending tests |
| Control Interface | Color touchscreen display |
| Adjustable Parameters | Cycle count, frequency, bending length, etc. |
| Dimensions (L x W x H) | 550 x 370 x 550 mm |
| Net Weight | 52 kg |
| Power Supply | AC 100 - 230 V, 50 / 60 Hz |
The PT087 is designed to support compliance testing aligned with leading international ePassport durability standards:
ISO/IEC 18745 (2018) Clause 8.7 — Mechanical test methods for passport booklets, covering dynamic flexing and bending fatigue evaluation. | ICAO Doc 9303 V3.2 (2006) Section 5.7 — Durability test requirements for machine readable travel documents and ePassports. |
Recommended Applications
ePassport Personalization Centers Validate booklet batches after lamination, binding, and chip implantation to ensure field durability. | Government Document Test Labs Certify passport booklet materials and constructions against ISO/ICAO bending fatigue criteria. |
ID Card & Booklet Manufacturers R&D and incoming QC for cover materials, adhesives, and inner-page laminates under cyclic flex loads. | Third-Party Inspection Agencies Independent durability verification for procurement acceptance and compliance audits. |
