Auto Sheet Trimming Machine - High-Precision Inlay Edge Finishing System
Product Overview

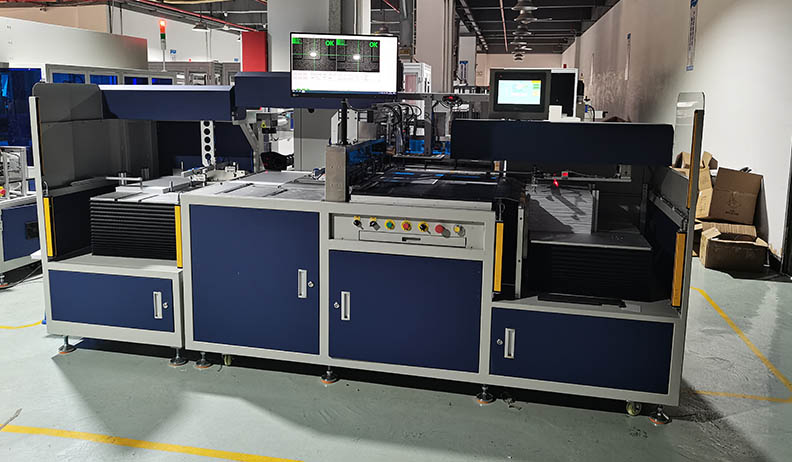

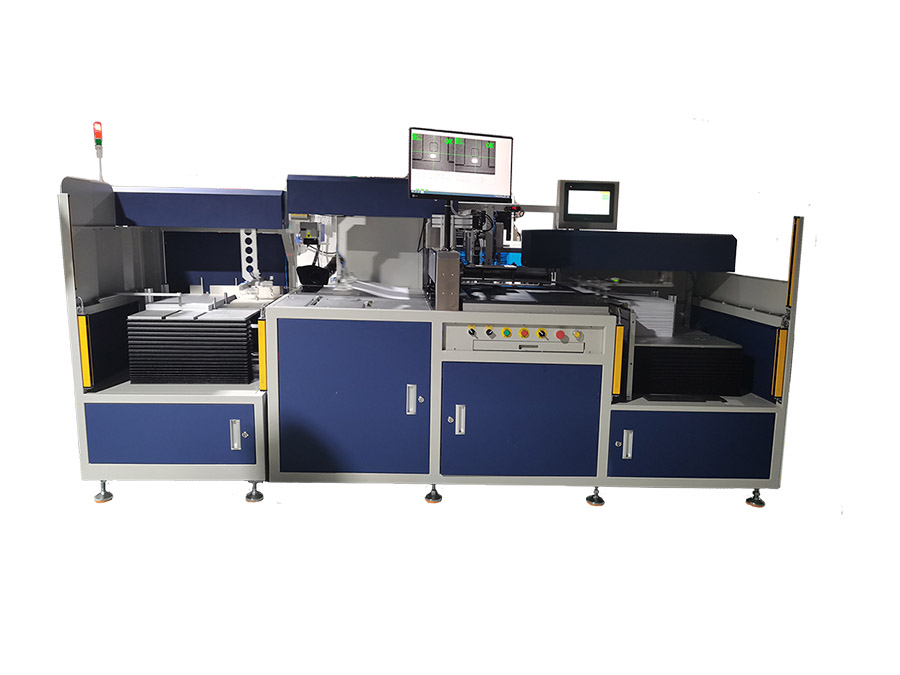

The Auto Sheet Trimming Machine represents the final stage of precision in advanced inlay manufacturing, delivering micron-level edge finishing for contactless card inlays, RFID sheets, and smart card components. Engineered for high-volume production environments, this fully automated system performs right-angle edge shearing with industrial-grade accuracy while eliminating manual handling errors. Integrating vision-guided positioning with servo-controlled mechanics, this machine ensures every inlay sheet meets exact dimensional specifications for seamless integration into final card bodies.
Technical Excellence in Edge Processing
Vision-Guided Precision Positioning
Dual-camera vision system provides 0.03mm recognition accuracy
Real-time image processing automatically identifies sheet orientation and position
Compensates for material variations and feeding inconsistencies
Advanced Servo Correction Technology
3-axis servo correction system enables dynamic positioning adjustments
Closed-loop feedback ensures cutting path accuracy throughout production runs
Maintains consistent performance regardless of production speed variations
Industrial-Grade Cutting Mechanism
CNC-machined tungsten carbide cutting dies guarantee perfect right-angle edges
Precision-ground cutting surfaces maintain sharpness through extended production cycles
Optimized cutting force calculation prevents material deformation or edge tearing
Complete Automation Workflow
Automated feeding system with 280mm capacity magazine
Integrated calibration station performs pre-cut positioning verification
Smart collection system organizes finished sheets for downstream processing
Zero manual intervention required during normal operation
Key Performance Features
1. Production Efficiency
Processing speed: 600-800 sheets/hour (layout dependent)
Continuous operation capability with automatic material handling
Quick changeover between different layout configurations
2. Quality Assurance
Cutting accuracy: ≤0.2mm edge tolerance
100% visual inspection of each sheet before cutting
Automatic rejection system for improperly positioned materials
3. Operational Intelligence
PLC+HMI control system with intuitive touchscreen interface
Real-time production monitoring and data logging
Predictive maintenance alerts and performance analytics
Customizable cutting patterns via software programming
4. Material Versatility
Compatible with standard inlay materials including PVC, PET, ABS
Supports multiple layout configurations: 3×8, 4×8, 5×5, 7×8
Custom tooling available for specialized material requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Auto Sheet Trimming Machine |
| Dimensions | 2000 × 1020 × 1450 mm |
| Weight | 650 kg |
| Power Supply | AC220V, 50/60 Hz |
| Power Consumption | ~2 kW |
| Air Pressure | 6 kgf/cm² |
| Control System | PLC + HMI Touchscreen |
| Positioning System | Dual-camera Vision (0.03mm accuracy) |
| Processing Speed | 600-800 sheets/hour |
| Cutting Accuracy | ≤0.2mm |
| Feed/Collect Height | 280mm |
| Operator Requirement | 1 person |
| Layout Compatibility | 3×8, 4×8, 5×5, 7×8 (customizable) |
Applications & Use Cases
The Auto Sheet Trimming Machine delivers high-precision edge finishing, ensuring professional quality for the final card product in various industries:
- Premium Credit & Debit Cards: Creates flawless, burr-free edges for high-end banking cards, enhancing the tactile feel and perceived value for financial institutions.
- Secure ID Documents: Critical for trimming government IDs and e-Passports, ensuring edges meet strict international security standards (ISO/IEC 7810) without damaging embedded chips.
- Corporate & Employee Badges: Ideal for mass-producing durable employee ID cards and visitor badges with clean, professional edges for corporate environments.
- Event & Conference Badges: Perfect for high-volume, short-run events where speed and edge quality are essential for attendee experience.
- Gift & Prepaid Cards: Ensures smooth edges on retail gift cards and prepaid telecom cards, preventing card jams in ATMs and POS terminals.
- Custom Shape Cards: Supports trimming of non-standard shapes (rounded corners, custom profiles) for branding and marketing cards.
Why Zowinda? Our advanced trimming system minimizes waste and maximizes yield, reducing production costs while maintaining ISO-compliant edge quality.
Advanced Control System
Intuitive HMI Interface
Touchscreen operation with multi-language support
Real-time display of production metrics and machine status
Parameter adjustment without stopping production
PLC Precision Control
Programmable logic controller ensures consistent operation
Automatic error detection and correction algorithms
Integration capability with upstream/downstream equipment
Smart Vision Software
Pattern recognition for various inlay designs
Automatic calibration for different material batches
Data recording for quality traceability
Applications & Industry Solutions
Smart Card Manufacturing
Final edge finishing for payment card inlays
Precision trimming for ID card components
Batch processing for access control cards
RFID Production
Edge refinement for inventory tag inlays
High-volume processing for logistics tags
Custom cutting for specialized RFID applications
Electronics Manufacturing
Component trimming for IoT devices
Precision cutting for flexible circuit boards
Automated processing for sensor components
Quality & Reliability Assurance
Built for Continuous Operation
Heavy-duty construction with 650kg frame stability
Precision linear guides and ball screw drives
Industrial-grade components rated for 24/7 operation
Minimal Maintenance Requirements
Self-lubricating cutting mechanisms
Easy-access maintenance points
Long-life cutting dies with quick-change capability
Safety & Compliance
CE-compliant safety systems
Emergency stop circuits with redundancy
Operator safety guards and light curtains
Customization & Integration
Flexible Configuration Options
Custom cutting patterns and die designs
Integration with existing production lines
Specialized material handling systems
Upgrade Capabilities
Enhanced vision systems for complex patterns
Higher capacity feeding/collection systems
Advanced data analytics and reporting
Why Choose Our Auto Sheet Trimming Machine?
For Manufacturers Seeking:
Consistent edge quality across high-volume production
Reduction of manual labor and associated errors
Seamless integration into automated production lines
Quick ROI through increased throughput and yield
Technical Superiority Delivers:
Higher yield rates through precision cutting
Reduced material waste with optimized nesting
Lower operational costs via full automation
Future-proof design with upgrade capabilities
Frequently Asked Questions
What is the trimming accuracy of the Auto Sheet Trimming Machine?
The machine achieves edge trimming accuracy of 0.2mm with vision-guided precision of 0.03mm using dual-camera system. This ensures consistent inlay edge quality for smart card production.
What is the production capacity?
The machine processes 600-800 sheets per hour, depending on the complexity of the trimming pattern and substrate material. The 3-axis servo control ensures consistent speed and accuracy.
What materials can be trimmed?
The machine is compatible with PVC, ABS, PETG, and other common smart card substrates. The vision system automatically adjusts for material variations.
Does the machine require CAD files for trimming patterns?
Yes, the machine uses CAD-based trimming patterns for precise edge finishing. The system supports common CAD file formats and allows for quick pattern changes.
What safety features are included?
The machine includes emergency stop buttons, protective covers, and automatic blade retraction when the cover is opened. The vision system also detects material jams and stops operation automatically.
Q1: What does this machine do? A1: Automatically trims and finishes the edges of inlay sheets with high precision, ensuring clean, accurate dimensions. Q2: What is the trimming accuracy? A2: ±0.1mm precision, meeting high-quality smart card manufacturing standards. Q3: Which materials are compatible? A3: PVC, PET, PETG, and other card materials. Thickness range: 0.3–1.0mm. Q4: What is the production speed? A4: 2,000–4,000 sheets per hour, depending on size and material. Q5: Are molds required? A5: Uses laser or die-cut trimming. Dies can be swapped quickly for different sizes; no complex molds needed. Q6: How is waste handled? A6: An automatic waste collection system gathers trimmed edges for easy disposal. Q7: What safety features are included? A7: Equipped with safety guards, emergency stop buttons, and light curtains for operator protection. Q8: Can it integrate with other machines? A8: Yes. Connects via conveyor belts to pick-and-place or lamination machines for a full automated line. Q9: Is it easy to operate? A9: Touchscreen interface. User-friendly. Training takes 1–2 days. Q10: What are the maintenance requirements? A10: Regular cleaning of dies, blade inspection, and lubrication. Full check every 500 hours.
