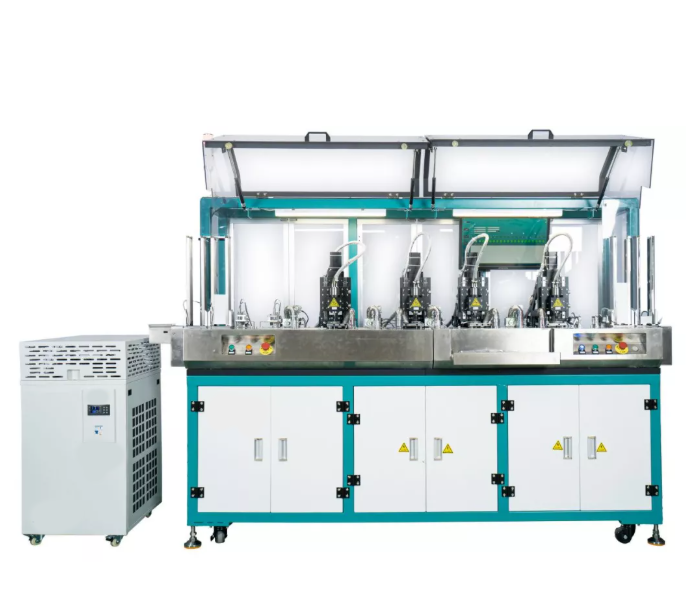

Smart Card Cavity Milling Machine: High-Precision CNC Cavity Machining for IC Chip Embedding & Smart Card Inlay Production
Micron-level accuracy for creating chip module cavities in smart card inlays — the foundation of contact and dual-interface card manufacturing
Understanding Cavity Milling in Smart Card Manufacturing
Cavity milling (also called cavity machining or chip pocket milling) is a precision subtractive process that creates precisely dimensioned recessed areas in card inlay substrates to accommodate IC chip modules. This process is essential for:
- Contact Smart Cards: Creating flush-mounted cavities for surface-contact IC modules with precise depth control
- Dual-Interface Cards: Milling deeper pockets for combined contact/contactless chip packages
- Antenna Integration: Preparing inlay surfaces for clean antenna lamination without air gaps or delamination
- Quality Consistency: Ensuring uniform cavity dimensions across high-volume production batches
Machine Specifications & Capabilities
Advanced Technology Features
Vision Alignment System
CCD camera-based registration system aligns each inlay before milling, compensating for material stretch and feed variations for consistent cavity positioning.
Vacuum Chip Removal
Integrated vacuum extraction removes 99% of milled debris instantly, preventing contamination of subsequent production steps.
Quick Program Change
Touchscreen HMI with library of standard cavity patterns. New patterns can be created and saved in under 5 minutes.
Quality Control Station
In-line optical inspection measures every milled cavity for dimensional compliance. Out-of-spec inlays are automatically rejected.
Frequently Asked Questions
What is the difference between cavity milling and slot milling?
Cavity milling creates recessed pockets for embedding IC chips into card inlays (pre-lamination), while slot milling cuts through-holes or channels in finished cards (post-lamination). Cavity milling operates on flexible inlay sheets, while slot milling processes rigid finished cards.
What cavity sizes does this machine support?
The machine supports all standard chip module form factors including SO-8, SON-8, MLP/QFN packages, and custom sizes up to 20mm x 30mm. Cavity depths are programmable from 0.1mm to 0.8mm in 0.01mm increments.
How does the vision alignment system improve accuracy?
The CCD camera captures registration marks or fiducials on each inlay sheet, calculating offset and rotation values. The CNC controller applies real-time corrections, achieving +/-0.02mm positional accuracy regardless of material handling tolerances.
Can it handle different inlay materials?
Yes. The machine processes PVC, PET, PETG, polycarbonate composites, and paper-based inlay materials. Cutting parameters (spindle speed, feed rate) are automatically adjusted per material type stored in the program library.
What is the typical ROI for a cavity milling machine?
For mid-to-high volume producers (500K+ inlays/month), typical payback is 12-18 months through reduced scrap rates (from 3% to under 0.5%), labor savings vs. manual operations, and increased throughput capacity.
Elevate Your Inlay Production Precision
Get expert consultation on integrating cavity milling into your smart card production line
Request Technical ConsultationEmail: [email protected] | WhatsApp: +86 186 2085 0485
