High-precision frequency testing for RFID and NFC cards to ensure performance compliance

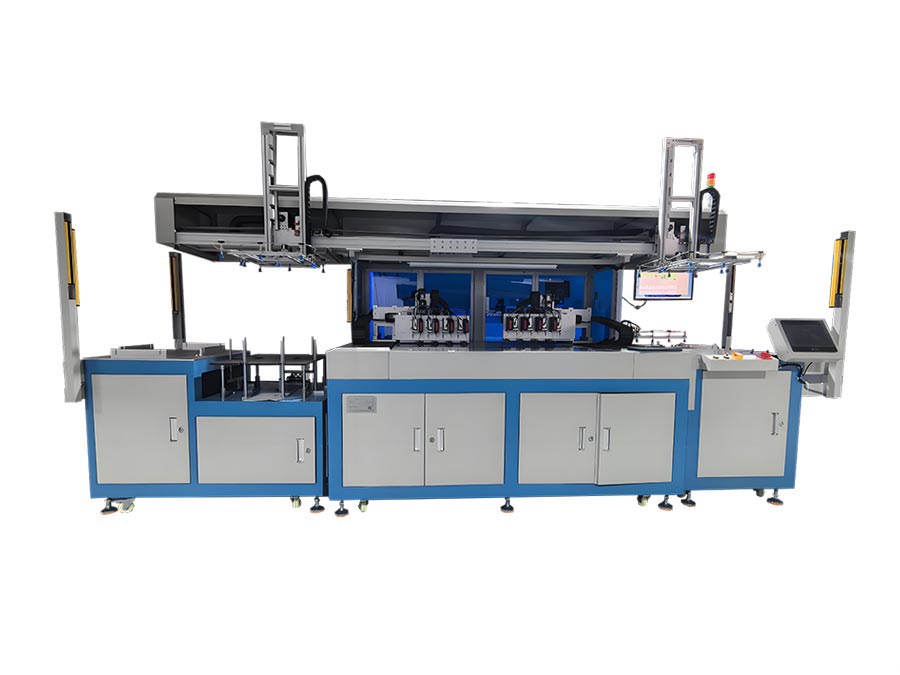

Figure 1: Automatic Frequency Test Machine Overview
What is a Frequency Test Machine?
An Automatic Frequency Test Machine is a specialized equipment for testing the frequency performance of RFID and NFC cards. It ensures that each card meets the required frequency specifications and performance standards before leaving the factory.
Testing Capabilities:
- Frequency Range Test: Verify card operates at correct frequency (13.56MHz for NFC)
- Reading Distance Test: Measure actual reading distance vs specification
- Signal Strength Test: Test RF signal strength and quality
- High Throughput: 1000-3000 cards/hour
- Automatic Sorting: Pass/fail sorting with reject bin

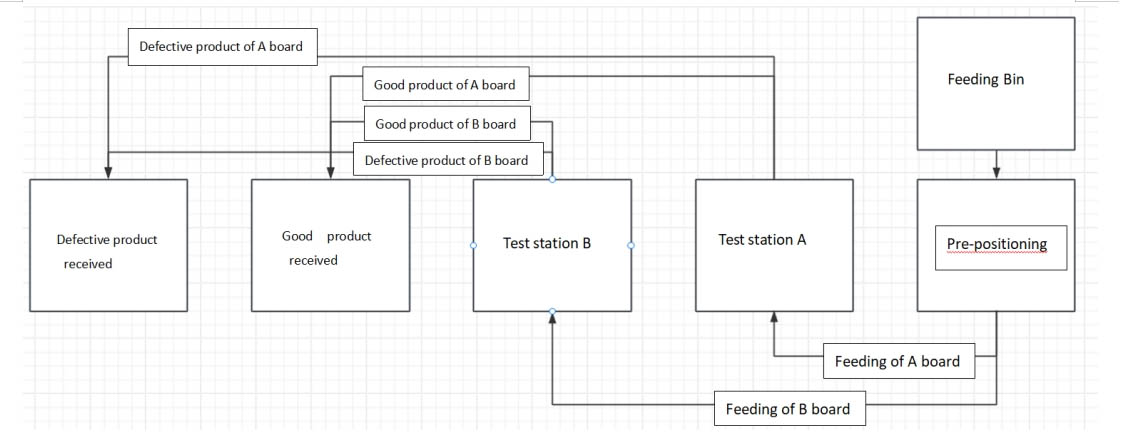

Figure 2: Frequency Testing Process
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Frequency | 13.56MHz (NFC) / 125KHz / 134KHz (customizable) |
| Test Speed | 1000-3000 cards/hour |
| Reading Distance Accuracy | +/-1cm |
| Control System | PLC + Test software |
| Power Supply | 220V 50/60Hz |

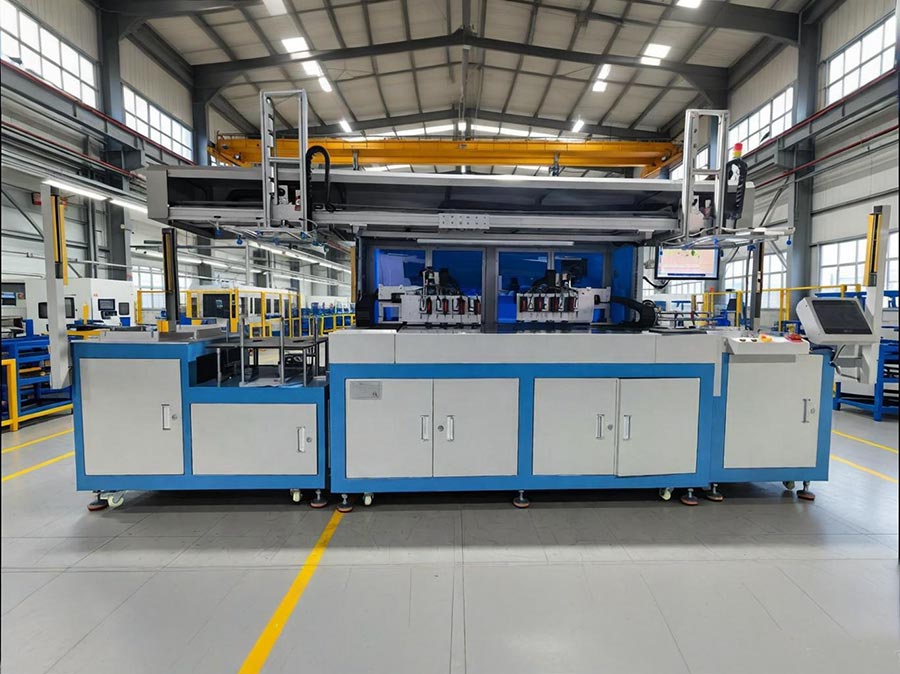

Figure 3: Machine in Operation
Frequently Asked Questions (FAQ)
What frequency standards can it test?
The machine can test 13.56MHz (NFC/RFID), 125KHz (LF), and 134KHz (LF) frequencies. Custom frequency ranges can be configured based on your specific card type.
What is the test speed?
The standard configuration achieves 1000-3000 cards per hour, depending on the test items and card complexity. Higher speed configurations are available for mass production.
Does it support data logging?
Yes, all test results are logged and can be exported for quality traceability. The system supports statistical analysis and report generation for quality certification.
Can it handle different card types?
Yes, the machine can be configured for various card types including NFC cards, RFID cards, and contactless IC cards. The system automatically recognizes card type and applies the correct test program.
What warranty and support is provided?
We provide 12-month warranty, installation, training, and remote technical support. Our team has extensive experience in RFID testing equipment and can provide ongoing support for your production needs.
Ready to Ensure Your Card Frequency Performance?
Get a customized frequency test solution for your RFID/NFC card production
Request Your QuoteWhatsApp: +86 186 2085 0485 | Email: [email protected]
