Auto Antenna Embedding Machine: 1200 Units/Hour Precision for RFID Inlays

Published: July 09, 2026 · Category: Industry News

The Auto Antenna Embedding Machine embeds fine conductive wires into RFID inlay and smart-card substrates at production speed, combining servo-driven precision with machine-vision alignment to keep placement accuracy within a fraction of a millimetre across high-volume runs.

Why Antenna Embedding Defines Inlay Quality

Every contactless card and RFID label depends on a precisely embedded antenna. Manual or semi-automatic embedding cannot sustain the tolerance, repeatability and throughput that modern inlay lines demand. Zowinda's fully automatic embedding station closes that gap: it feeds the substrate web, positions the antenna wire with vision guidance, and embeds it continuously â eliminating human variance while lifting line output to 1200 finished units per hour.

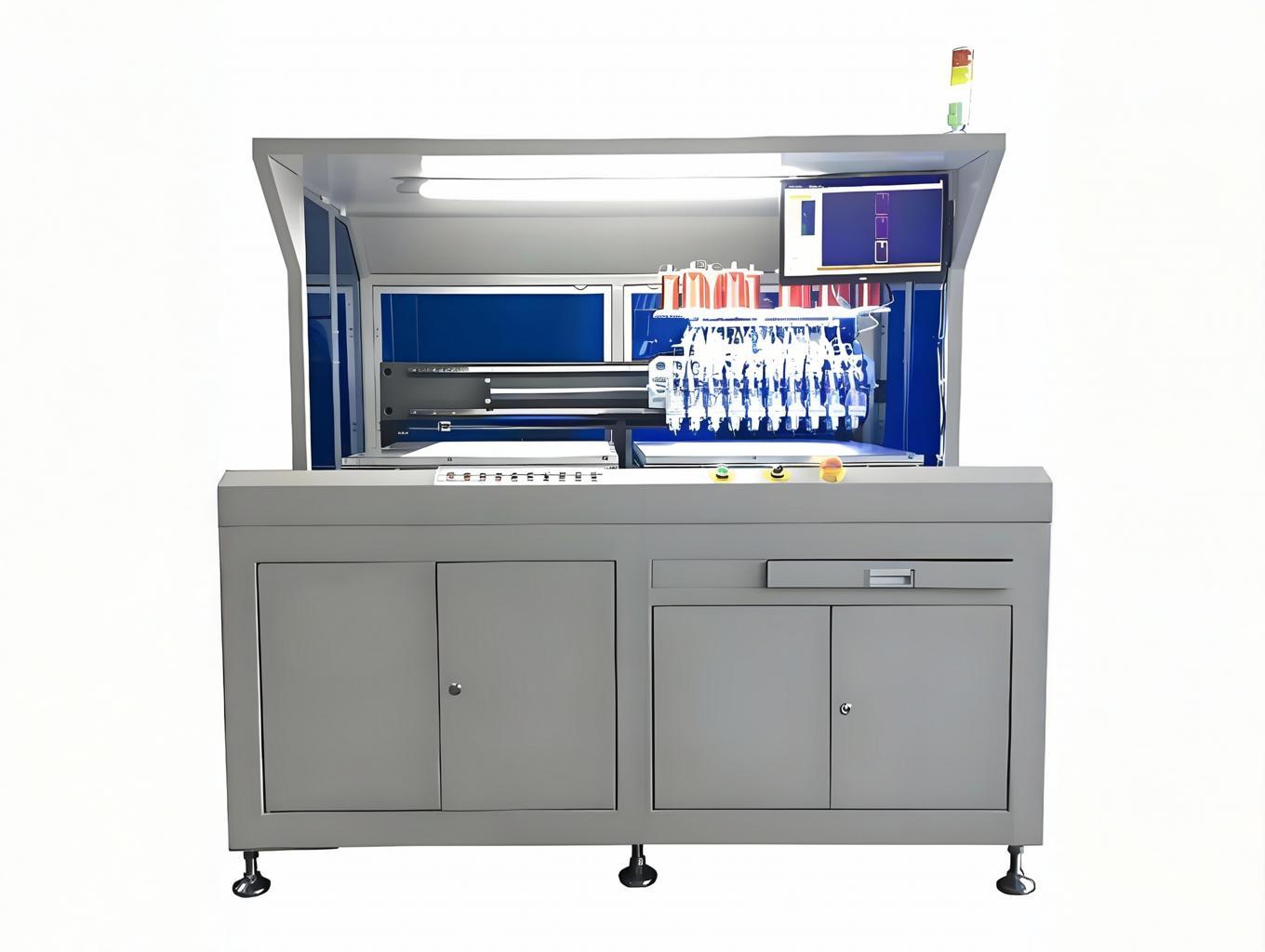

Zowinda Auto Antenna Embedding Machine â vision-aligned wire embedding for RFID inlays.

Core Capabilities That Drive Yield

Five engineered capabilities keep the machine fast, accurate and easy to run on a real production floor.

High-Speed Continuous Embedding

Stable 1200 units/hour throughput with continuous web handling and automatic indexing between stations.

Vision-Guided Alignment

CCD positioning corrects substrate drift in real time, holding antenna placement within +/-0.1 mm.

Servo Tension Control

Closed-loop wire tension prevents sag, overlap and breakage across the full roll.

Fast Changeover

Recipe-based settings switch product types in minutes without mechanical re-tooling.

Inline Defect Reject

Missing-wire and misalignment faults are detected and diverted automatically.

MES / Industry 4.0 Ready

Standard PLC and data interfaces feed OEE, counts and alarms to your MES dashboard.

Technical Specifications

Parameter	Specification
Throughput	Up to 1200 units / hour
Placement accuracy	+/- 0.1 mm (vision guided)
Substrate width	50 - 120 mm adjustable
Wire tension control	Closed-loop servo, auto-compensated
Power supply	AC 220V / 50-60Hz
Air supply	0.5 - 0.7 MPa clean dry air

Where It Delivers Value

The machine serves RFID inlay converters, smart-card manufacturers and antenna label producers that need reliable, repeatable embedding at scale. It integrates upstream with roll unwinding and downstream with lamination or testing, forming a continuous, low-labour production cell.
