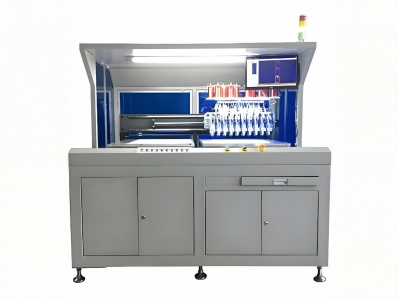

Zowinda Unveils Next-Gen Auto Antenna Embedding Machine: Precision at 1200 Units/Hour

 As global demand for contactless smart cards surges past 25 billion units annually, Zowinda Technology responds with its breakthrough Custom Auto Antenna Embedding Machine – a PC-controlled ultrasonic solution delivering 99.9% placement accuracy at speeds of 1,200 antennas/hour.

Industry Challenge: The Precision Gap

With RFID payment cards requiring sub-millimeter antenna alignment and healthcare ID cards demanding flawless NFC connectivity, traditional embedding methods struggle with:

• Manual errors: 5-8% defect rates in hand-fed systems

• Rigid tooling: Hours lost to mechanical adjustments for different card layouts (3×8, 4×8, etc.)

• Throughput limits: Legacy machines averaging 600-800 units/hour

Zowinda’s High-Speed Solution

1. Ultrasonic Precision Engineering

• 0.02mm embedding tolerance meets ISO/IEC 7810 standards

• Vacuum aspirating platform eliminates card slippage during high-speed operation

2. Drag-and-Drop Programmability

• Biaxial servo system + CAD-style software allows:

  • 90-second layout changes (e.g., switching between RFID and SIM card patterns)

  • Custom paths for hybrid card designs

3. Modular Scalability

• Single-unit operation or synchronized multi-machine clusters for 4,800 antennas/hour

Proven Impact

A Southeast Asian card manufacturer achieved:
✅ Zero misaligned antennas in 500K-unit EMV card order
✅ 40% faster changeovers vs. pneumatic systems
✅ ROI in 11 weeks through reduced material waste

•


•

• Technical Specifications

• Feature	Advantage
  Ultrasonic embedding	No thermal damage to PVC/ABS/PETG substrates
  6 kg/cm² air pressure	Consistent force for 0.2-0.4mm materials
  1,300kg steel frame	Vibration-free operation at max speed

•

•

• Market Applications

• Payment Cards: EMV-compliant antenna grids for Visa/MasterCard

• Healthcare IDs: HIPAA-compliant NFC tags for patient records

• 5G SIM Cards: High-frequency antenna architectures

Q: What is the main function of this machine?
A: It automatically sorts playing cards (poker, blackjack, etc.) by suit, rank, or random order.

Q: What is the sorting speed?
A: Processes 1,500–3,000 cards per hour.

Q: How does it identify cards?
A: Uses high-speed cameras and image recognition for accurate card identification.

Q: Can it handle different card brands?
A: Yes. Adjustable settings for various card sizes and designs.

Q: Can it shuffle cards?
A: Optional shuffling module available for randomizing cards.

Q: Is it suitable for casinos?
A: Yes. Designed for high-volume casino and gaming operations.

Q: What is the accuracy rate?
A: >99.9% sorting accuracy.

Q: Is the operation automated?
A: Yes. Fully automated feeding, sorting, and stacking.

Q: What safety features are included?
A: Emergency stop and safety guards.

Q: What support is available?
A: Full technical support and training.
